Fantom AM35aluminium. MTB.
Bombproof and lightning-fast wheels.
The Fantom AM40 is for the trail and enduro riders. Designed to be lightweight and fast-rolling with a 40mm external/35mm internal width for the perfect balance of speed and control.

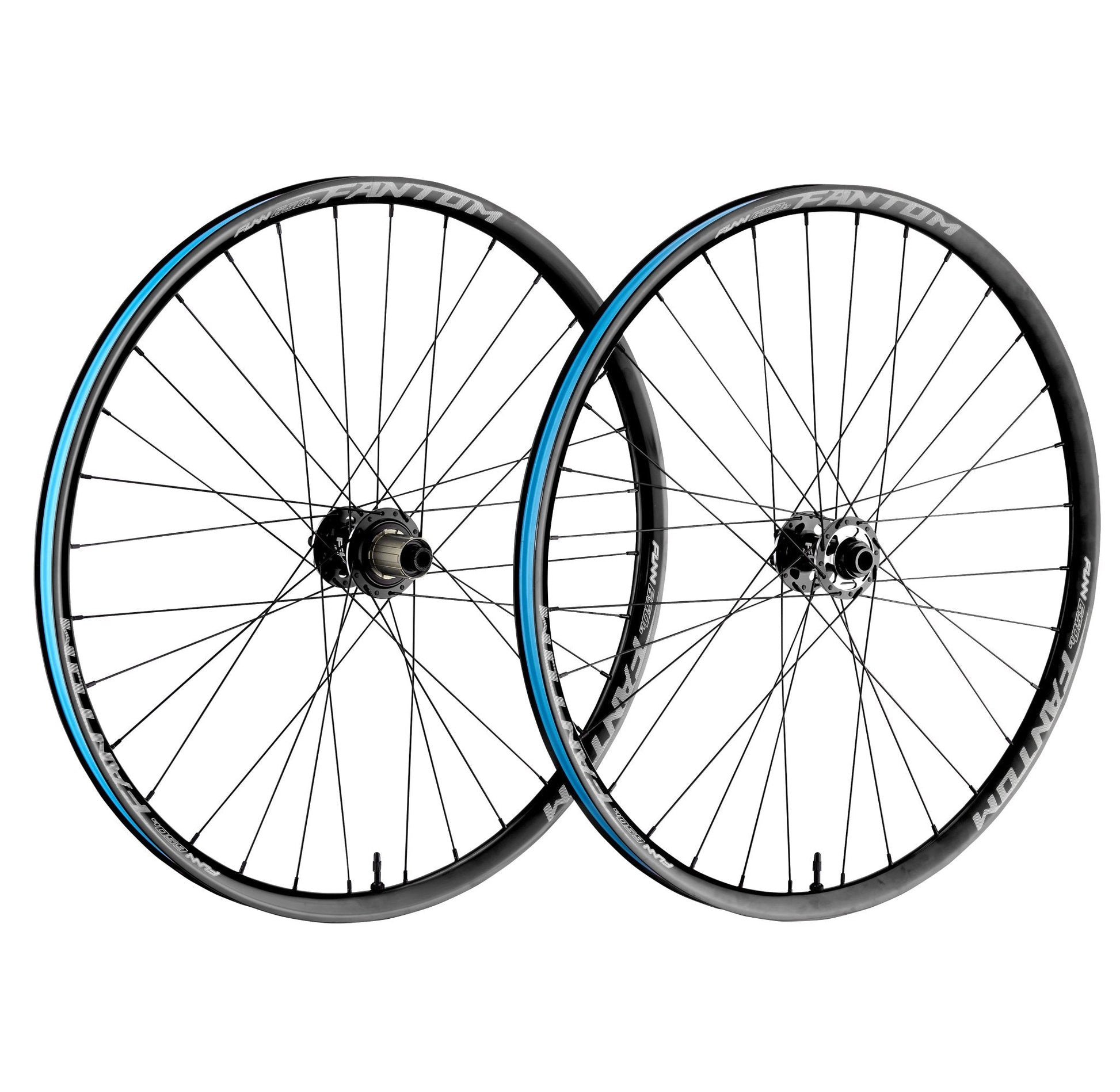

Funn Fantom wheelsets are the complete package, pairing Funn Fantom hubs and rims to create a lightweight, tough and fast wheel for everything from downhill to trail to gravel. Our wheels are available in 27.5″ and 29″ and Boost/Non-Boost.
The Fantom hub is precision-engineered from AL6061 with a quick-engagement 6 pawl and 102T design.
The Fantom rim is a bombproof and lightweight design, made from welded AL6066 with a sandblasted black anodised finish.
Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves.
|Intended use||Trail / Enduro|
|Tubeless-ready||Supplied with tubeless tape and 2 x valves|
|Spoke count||Front 32H|
Funn Fantom Rim
|Axle standard front||15x100mm / 15x110mm|
|Axle standard rear||12x142mm / 12x148mm|

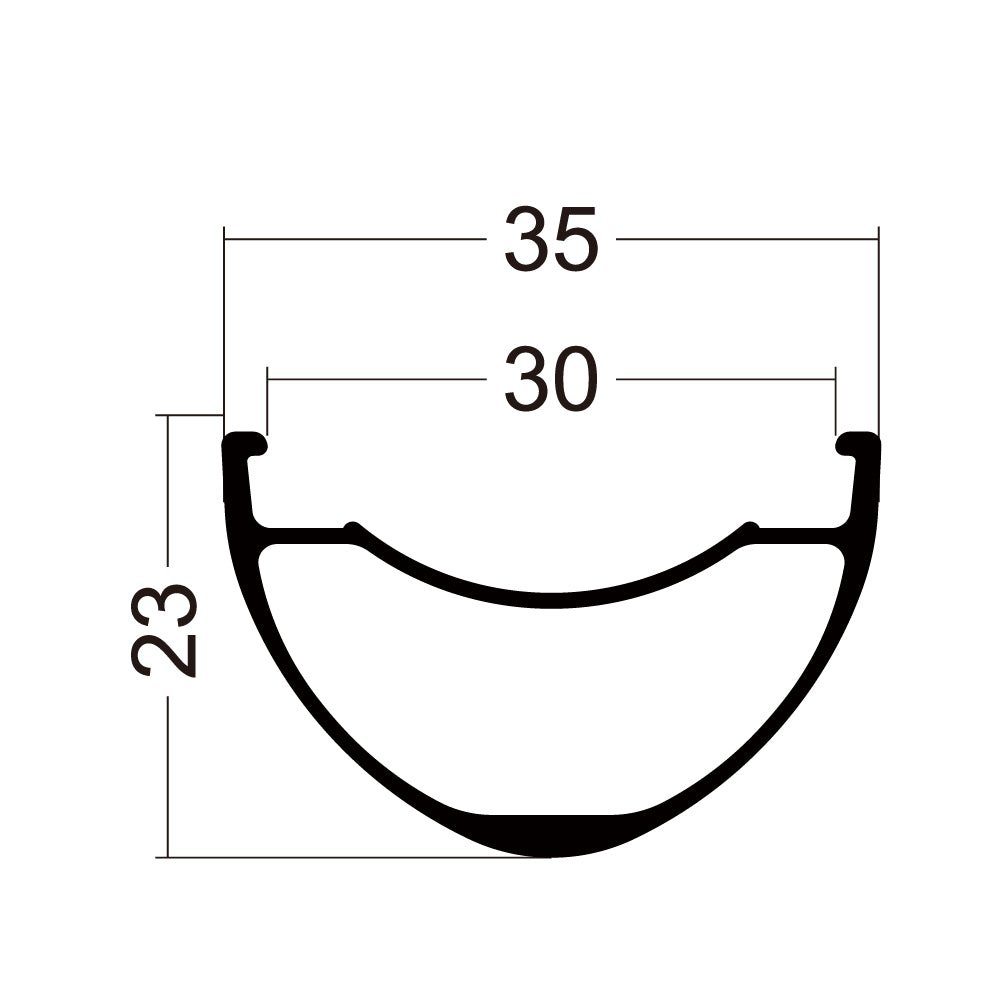

|Rim width external||35mm|
|Rim width internal||30mm|
|Rim material||Welded 6066 Alloy|
|Finish||Sandblasted Anodized Black|

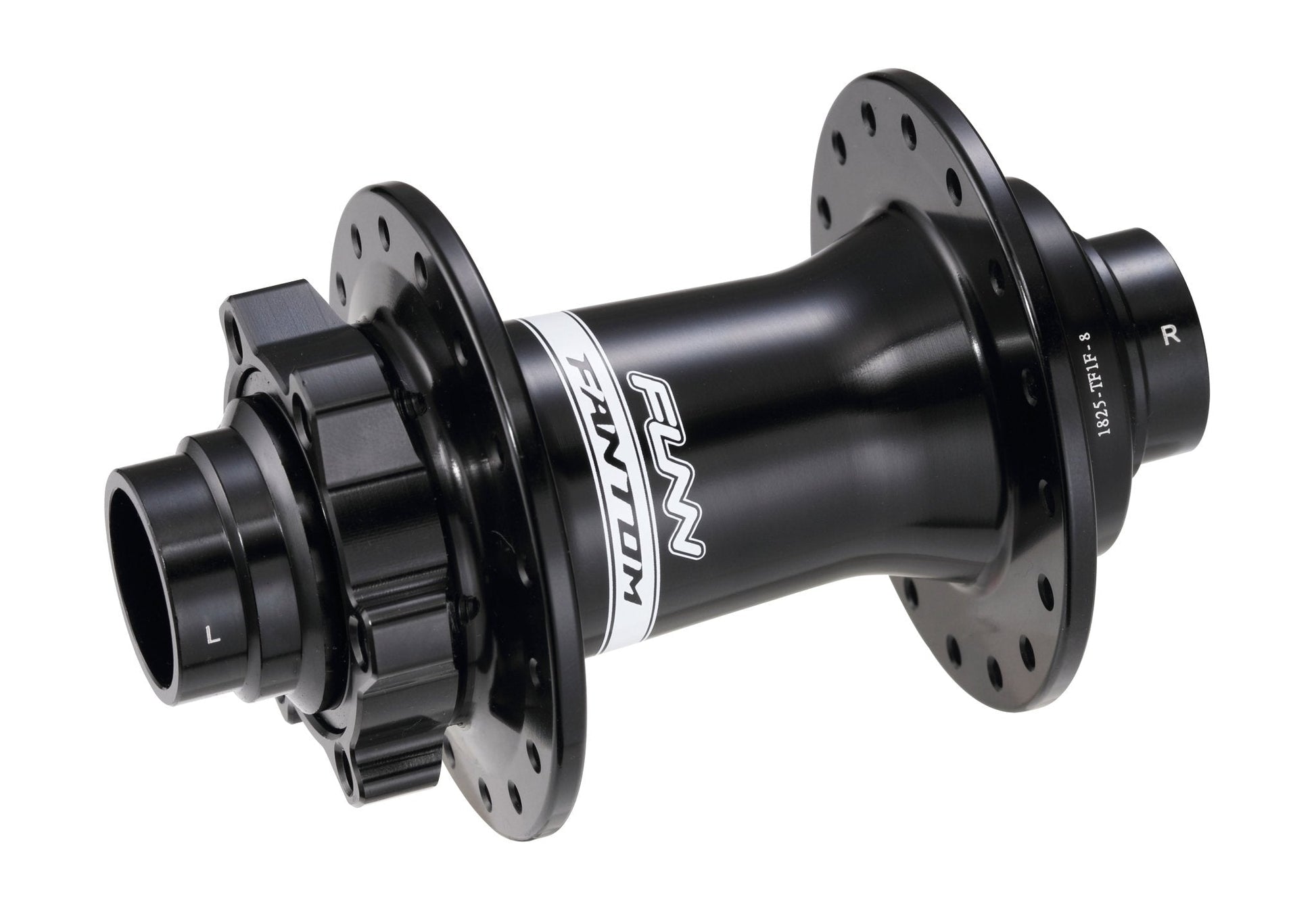

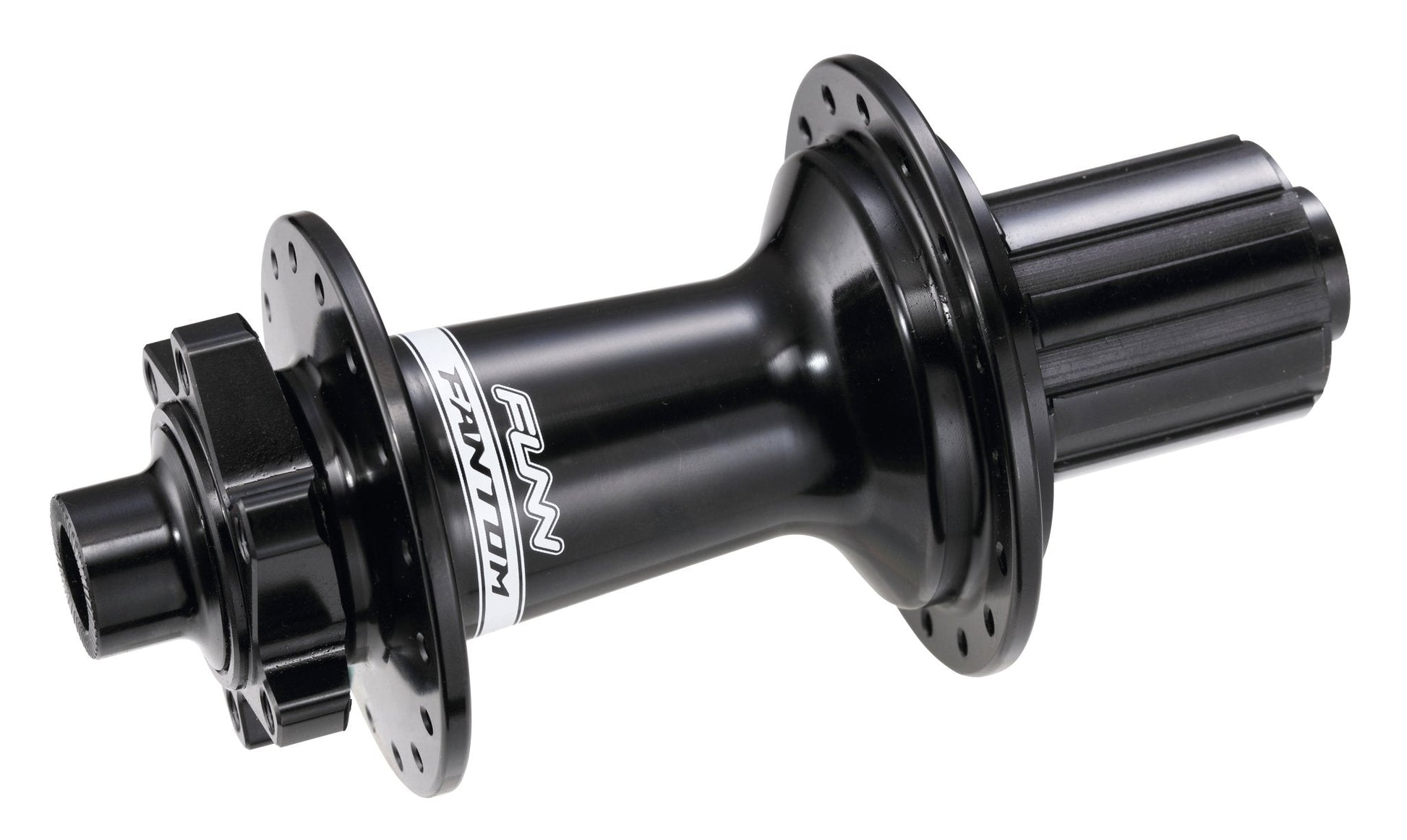

Funn Fantom Hub
|Engagement||Fantom 102T quick engagement|
|Cassette body||Shimano HG / SRAM XD / Shimano Micro Spline|
|Hub body||6061 Alloy|
|Compatibility||100mm front/142mm rear hubs can be converted to QR standard.|
Cassette body is convertible between Shimano and SRAM standards.
|Spoke count||32h each wheel|
